Form Rentals

Our panels work in 2" increments, typically ranging from 6" to 24" wide in each height (panels 4' and shorter are available in wider widths). We have corner assemblies for 90 degree and 45 degree corners.

Our system uses horizontal lockbar (waler bar) and quick strip ties. Corners are composed of normal panels on the outside (1'6" typically) reinforced with steel corner brackets held in place by the quick strip ties and the lock bars; on the inside we use a hinged corner assembly (10" typically).

So, keep in mind that if any footing steps are kept outside the corner assembly (18" on the outside) and are at 2" increments, life is simpler for both of us! It is also helpful if footing steps are marked on your plan with the low side clearly indicated.

Current Form Rates are as follows:

per lineal foot of wall (includes lockbar)

Height (inches)
Forms
Ties / ft
Forms + Ties
10' (120")
$14.00
8
$19.28
8' (96")
$8.00
6
$11.96
6'8" (80")
$7.35
5
$10.65
5'4" (64")
$6.40
4
$9.04
4' (48")
$5.20
3
$7.18
2'8" (32")
$3.75
2.20
$5.23
2' (24")
$3.00
1.20
$3.82
1'4" (16")
$1.95
0
-

Actual quantity of ties may vary slightly
CORNER CHARGE
  $10.00

Delivery available - Local rates start at $220 return (includes pickup)

Prices subject to taxes

If you have any questions, please call us.

Notes:
per lineal-foot rates based on external dimensions
charge per corner applies to tees, 90* corners and 45* corners
typical rental period is one week (5 working days)

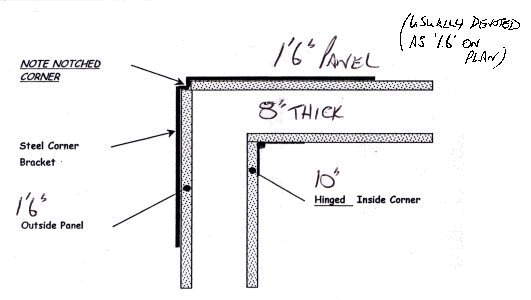

Corner Form Setup

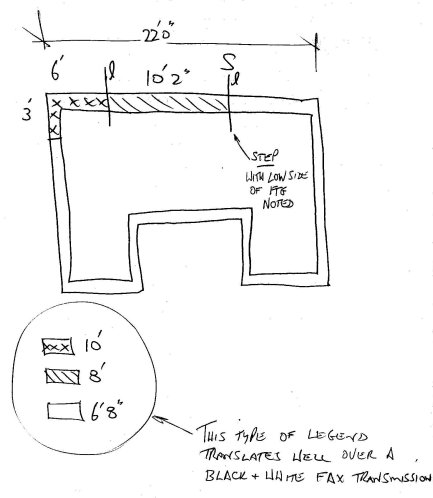

Suggested Customer Supplied Sketch



Forming Accessory Rentals

We Rent:
lockbar
steel stakes
form aligner braces
form wedges
single waler brackets
pencil rod buttons

Lockbar (waler bar) is available in
1',1'4", 2', 3', 4', 5', 6' and 8' lengths
and are priced per length


Delivery is available
